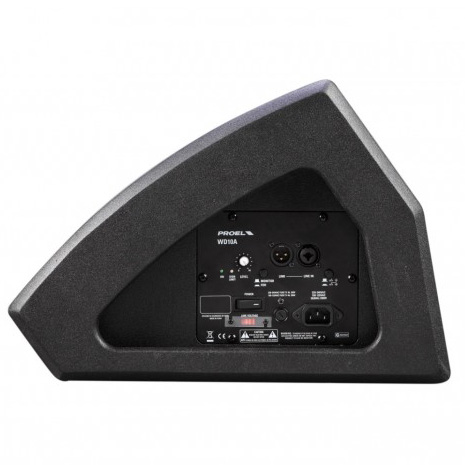

Proel WD10A
The WEDGE series are built with extremely light-weight and portable plywood enclosures. The coaxial transducers, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for perfect listening from any position. The lightweight CLASS D amplifier modules with SMPS, coupled to sophisticated analogue processing, provide an impressive sound pressure level, with an extremely detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two tailored EQ PRESETS are available so that the speaker can be used not only for stage monitoring but also as a 'front of house' system. The low-profile, stylish and unobtrusive cabinet, with recessed handles and scratch-resistant polyurethane coating, fits perfectly on any stage. They're an ideal solution for speech, vocals and keyboards.
System type 2-way coaxial vented
Low Frequency Device 10” woofer with 2" VC
High Frequency Device 1” neo compression driver with 1" VC
Angular Coverage 80°
Frequency Response 60 Hz - 20 kHz
Max SPL at 1mt (peak) 123 dB
Amplifier Continuous Power HF: 50 W CLASS AB;LF: 200W CLASS D with SMPS
Input Impedance 30 kohm balanced / 15 kohm unbalanced
Input sensitivity 0 dBu
Controls LEVEL, PRESET selector (MONITOR, FOH), GND lift
Connectors INPUT: COMBO (XLR-F/JACK) - LINK: XLR-M
Power Supply 230 VAC or 120 VAC 50/60 Hz
Maximum Consumption 315 W
Rated Consumption* 165 W
Construction Plywood with black anti-scratch polyurethane paint
Pole adapter 1 x side
Handles 2 x sides
Monitor Taper 36°
Weight 11 kg (24,25 lb)
Dimensions (W x H x D) 480x300x420 mm
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
