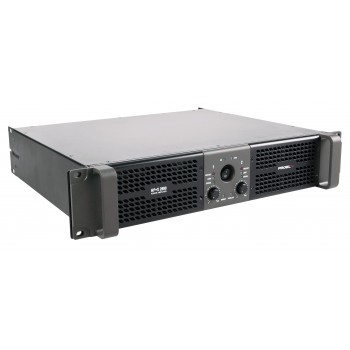

Proel HPX2800

With the combination of efficient CLASS H power stages and a reliable switching power supply, the HPX2800, can deliver 2800 watts total at 2 ohm load making it a very convenient source of power in even the most demanding sound reinforcement applications. Light-weight and easily manageable, the HPX series amplifiers offer practicality as one of their primary features. Their switching mode power supplies and efficient cooling systems make them particularly suited for use in compact and portable systems and, at the same time, make them reliable and durable even after years of intense use. A selectable LPN (low-pass notch) filter allows for improved low-frequency response, guaranteeing more punch and greater dynamics, while simultaneously protecting the connected speakers from over-excursion. The front panel, which offers convenient, die-cast handles and a removable dust filter, provides a comprehensive system of LED status indicators and indexed level controls.<br /><br /><br />
With the combination of efficient CLASS H power stages and a reliable switching power supply, the HPX2800, can deliver 2800 watts total at 2 ohm load making it a very convenient source of power in even the most demanding sound reinforcement applications. Light-weight and easily manageable, the HPX series amplifiers offer practicality as one of their primary features. Their switching mode power supplies and efficient cooling systems make them particularly suited for use in compact and portable systems and, at the same time, make them reliable and durable even after years of intense use. A selectable LPN (low-pass notch) filter allows for improved low-frequency response, guaranteeing more punch and greater dynamics, while simultaneously protecting the connected speakers from over-excursion. The front panel, which offers convenient, die-cast handles and a removable dust filter, provides a comprehensive system of LED status indicators and indexed level controls.



£599.00
  • Details
Power:600 W @ 8 ohms*; 1000 W @ 4 ohms*; 1400 w @2 ohms**
Power BRIDGED @ 8 ohm  2000 W*
Power BRIDGED @ 4 ohm  2800 W**
Output Stage: 2-tiers Class H
Frequency response: (+0/-0.5 dB) 20 Hz - 20 KHz
Input Sensitivity (nominal): 0 dBu / 0.775Vrms
Input Sensitivity (fixed gain): +7.0 dBu / 1.73 Vrms
GAIN (nominal/fixed) 39 dB (89x) / 32 dB (40x)
Input Connectors/Impedance: XLR/M, 1/4" JACK, RCA  / 20 Kohm (balanced), 10 Kohm (unbalanced)
Output Connectors: Speakon and Binding Post
Damping Factor: > 200
Slew Rate: > 20 V/uS
S/N Ratio (unweighted): > 91 dB
THD+N: < 0.1%
Controls: INPUT LEVEL, INPUT SENSITIVITY, STEREO/BRIDGE/PARALLEL, LOW PASS NOTCH (LPN), GND LIFT
LED Indicators: POWER,   ON,   PARALLEL,   BRIDGE,   SIGNAL,   LIMIT,   PROTECT
Cooling: Variable speed DC fan
Protection: AC low power, DC, thermal, short circuit, VHF, CLIP limiter
Mains Supply Voltage: 230 VAC (±10%) 50/60 Hz or 120VAC (±10%) 50/60 Hz
Maximum Consumption: 1489 VA
Rated Consumption ***: 370 VA
Standby Consumption: 3.5 VA
Dimensions (W x H x D): 483 x 89 x 395 mm ; 19" x 3.5" x 15.6"
Weight 9.2 Kg (20.3 lb)
* RMS both channel THD < 1%
** 40 ms burst
*** Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
