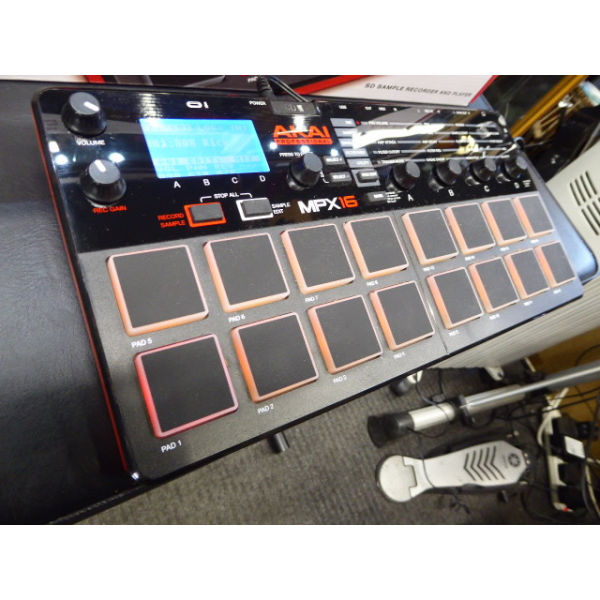

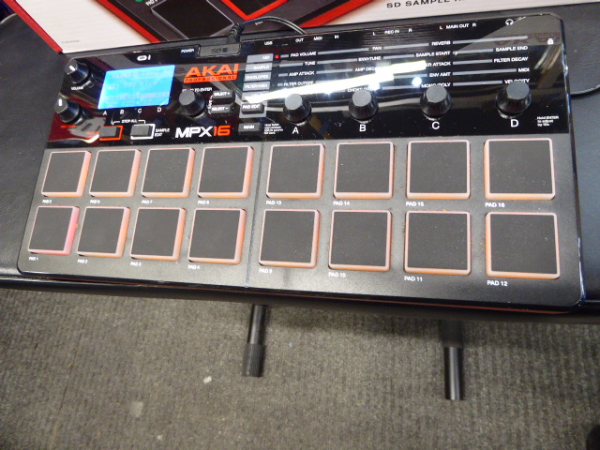

The MPX16 is an advanced sample player with sixteen backlit velocity-sensitive pads.

Trigger sound samples stored on standard SD or SDHC cards.

Hyper-responsive trigger pads and backlit display make tapping into your sample library a simple task.

Integrated audio inputs empower you to create your own sample library without needing a computer.

Two 6.3mm jacks let you connect your studio gear or other sound sources to the MPX16 for sample capture.

On board editing tools provide sample trimming and pad assignment for immediate synergy into a production or performance.

Use the headphone jack to monitor your captures, or send the audio to a mixer, monitors or a recording interface using the 1/4 inch main outputs.

A built-in mic provides immediate sample capture for those times when inspiration strikes whilst a dedicated Record Gain knob ensures you get the level just right.

USB & MIDI Connectivity

The full-size USB port lets you drag and drop samples from your computer and even use the MPX16 as an SD card reader/writer.

The USB connection also provides a pipeline for MIDI data, enabling sample triggering from your DAW or computer-based sequencer.

A 5-pin MIDI input means SD samples may be triggered from any MIDI-enabled gear such as keyboards, pad controllers, synths and electronic drums. A 5-pin MIDI output lets the MPX16 function as a dynamic pad controller.


Specifications

    Internal Sound Engine: Sample Playback and Record
    Pads: 16 x Velocity Sensitive
    Effects: Reverb

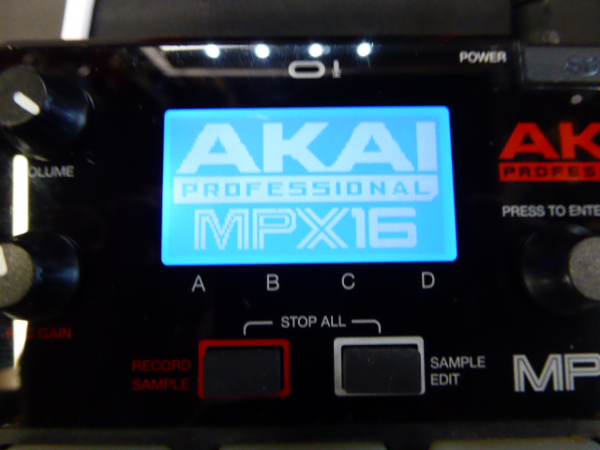

    Display: Monochromatic LCD (Backlit)
    Knobs: 5 x 360° Encoders, 2 x 270° Encoders
    Polyphony: 64 Voices Total
    Sample Tuning: +/- 12 Semitones
    Inputs: 2 x 1/4" Jack, 1 x 5-Pin MIDI
    Outputs: 2 x 1/4" Jack, 1 x 1/4" Headphone, 1 x 5-Pin MIDI
    USB: USB - MIDI (In/Out)
    Additional Media Storage: SD (Sold Separately)
    Power Input: 5.8V DC / 860mA (USB)
    Height: 1.2"
    Width: 11.6"
    Depth: 5.8"
    Weight: 0.68 Kg
