Sound Generator:
Organ Section
2 - VASE III as Digital Tone-wheels, Transistor Organ and Pipe Organ
61 polyphony (for manual, except Pipe Organ)
8 polyphony (for pedal, except Pipe Organ)
63 polyphony (maximum, on Pipe Organ)
Extra Voice Section
VASE III, 63 polyphony (maximum)

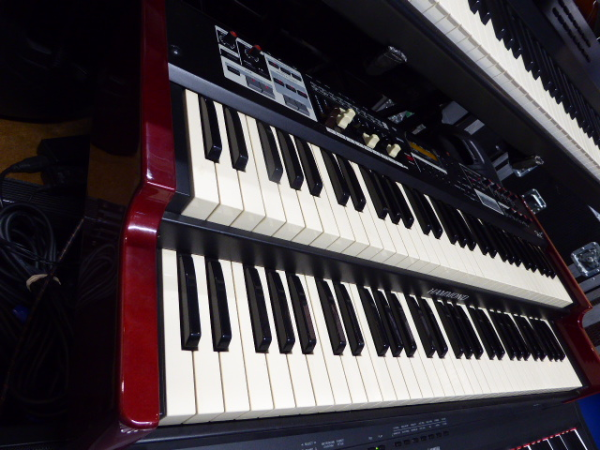

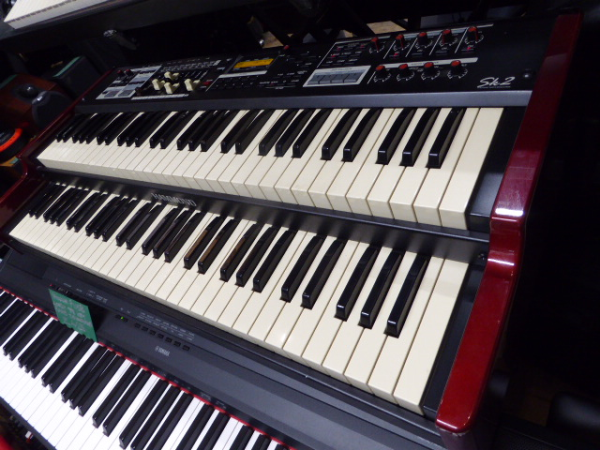

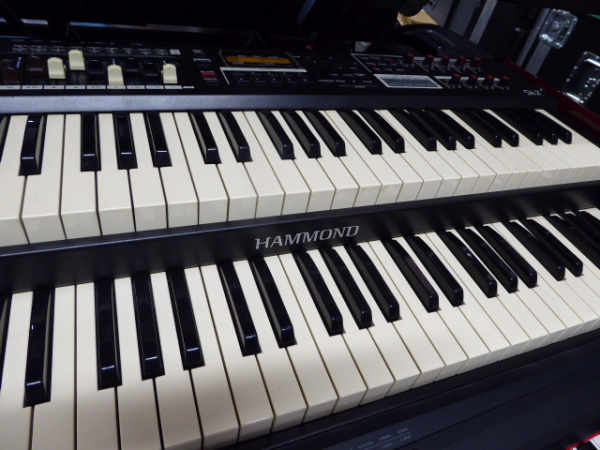

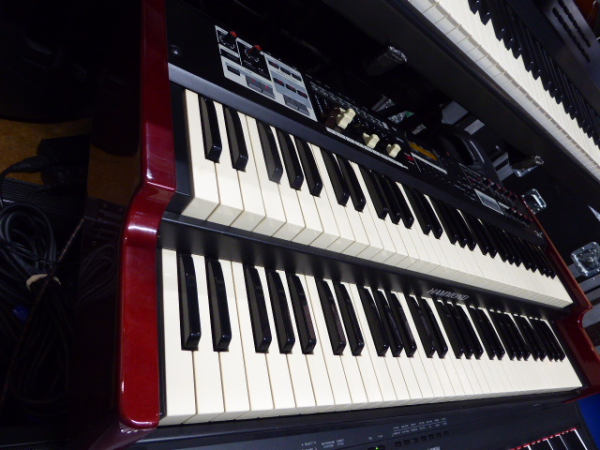

Keyboards
2 x C1 to C6 61-key
Harmonic Drawbars
Drawbars
9 Pitches, assignable for Upper, Pedal, Lower
Voicing
Manuals: 6 choices (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe), valiable key-click,
Pedal: 4 choices (Normal, Muted, Synth1, Synth2), 5 choices key-click

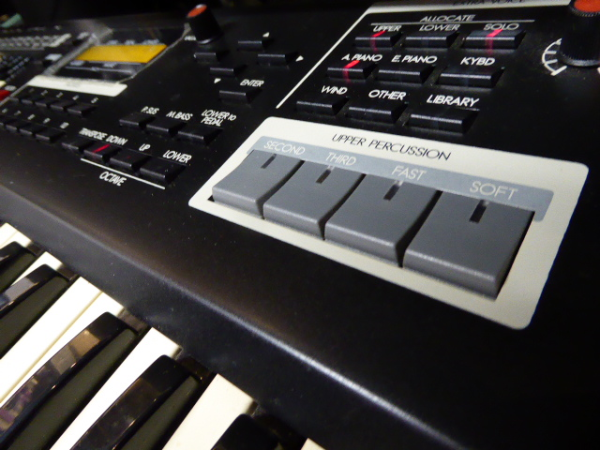

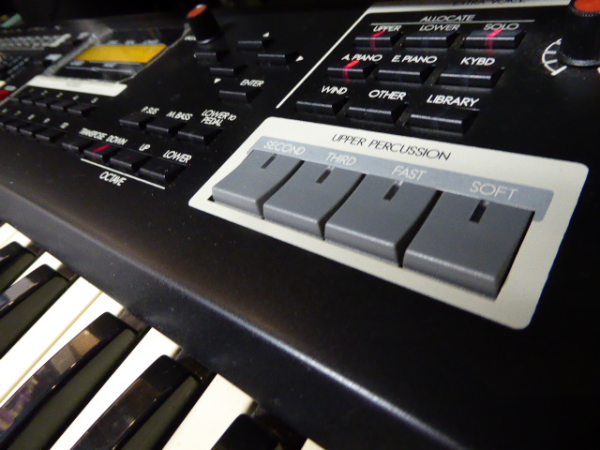

Touch Response Percussion
Buttons
Second Harmonic, Third Harmonic, Fast Decay, Volume Soft
Adjustable
Touch, Velocity, Decay (Fast, Slow), Level (Normal, Soft)
Extra Voice
Instruments
6 Groups (A. Piano, E. Piano, Keyboard, Wind, Other, Library)
Upgradable via Library
Control
Allocate Upper/Lower, Solo, Group
Effects
Vibrato and Chorus
Digital Scanner
Buttons: 1, 2, Chorus, Upper On, Lower On
Overdrive
Digital, 4 programs
Control: On, Amount
Multi Effects
8 programs for Organ/Extra Voice individually
Control: On, Amount
Equalizer
for Organ: Bass, Mid (sweep), Treble, Tone
for Extra Voice: Bass, Mid (sweep), Treble
Internal Leslie
Advanced Digital, 2 Rotors
Buttons: Bypass, Stop, Fast
Reverb
Digital, 11 programs
Control: On, Depth

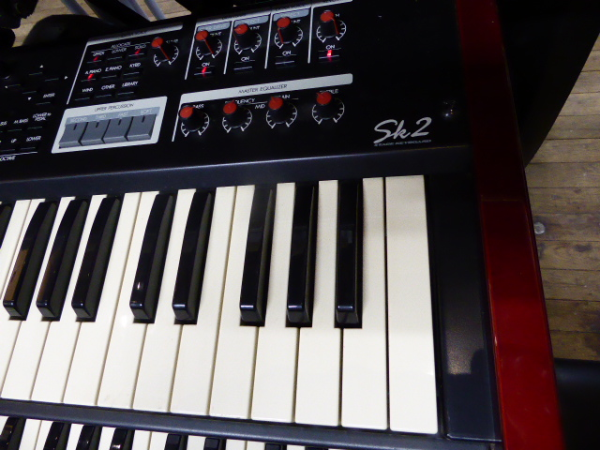

Master Equalizer
Control: Bass, Mid Gain, Mid Frequency, Treble
Keymap
Buttons
Lower to Pedal (SK2 only) Octave Up, Octave Down, Lower, Transpose
Adjustable
Coupler Highest note, Split Point
Patches
Capacity
100 User Patches, 100 Preset Patches, Manual
Favorites
10 buttons
Patch Load Options
Drawbar Registration, Drawbar Parameters, Extra Voice, Internal Zone, External Zone, Organ Effects, Exv Effects, Reverb
Controllers
Volumes
Master Volume, Music Volume, Extra Voice Volume
Switch
Power On/Off
Music Player
File Format
WAV (44.1kHz, 16bit, Stereo), MP3 (44.1kHz, 128kbps, Stereo)
Control
Song, Play/Pause
Storage
USB Flash Drive

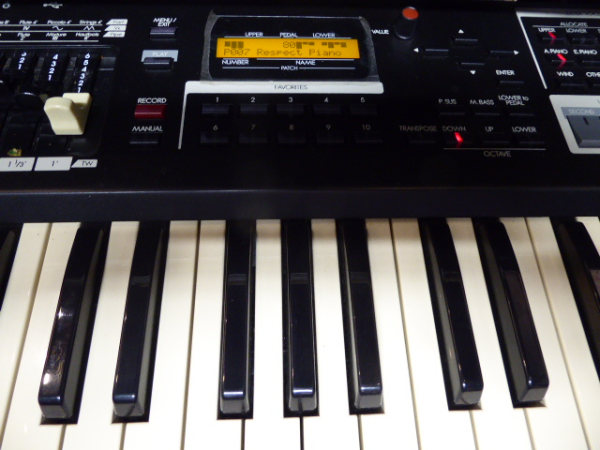

Display
20 - Characters, 2 - Lines
8 Control Buttons and Value knob
MIDI
Templates
5 Templates(SK2)
External Zones
3 Zones, assignable any keyboards
Connections
MIDI
In, Out
Audio
Line Out L, R, Headphones
Leslie
8 - pin, 1 and 3 channels available
Other
Foot Switch, Damper Pedal, Exp. Pedal, DC IN (12V)
Dimensions: 37 1/4"(W) x 17 7/8"(D) x 6 3/4"(H)
Weight: 35 1/4 lbs
