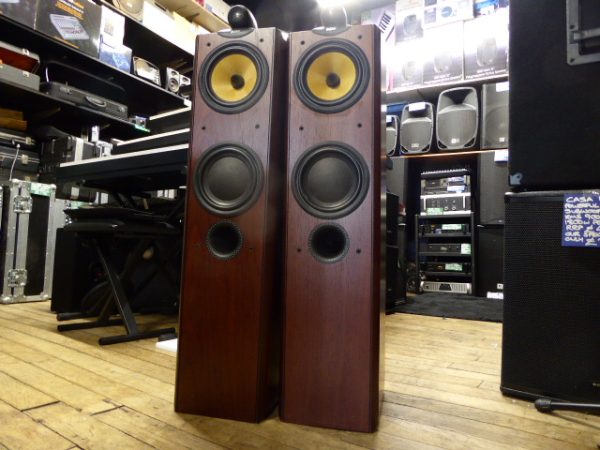

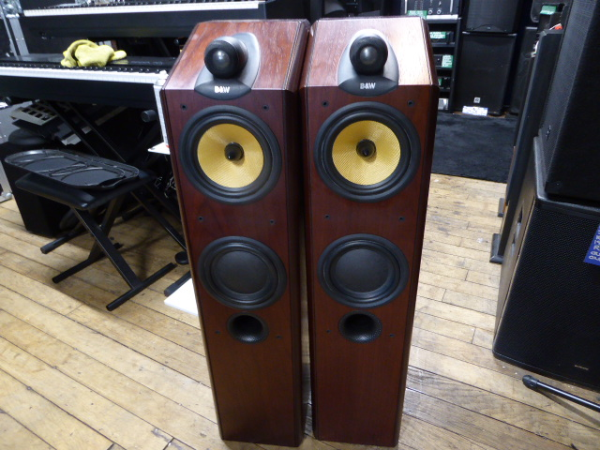

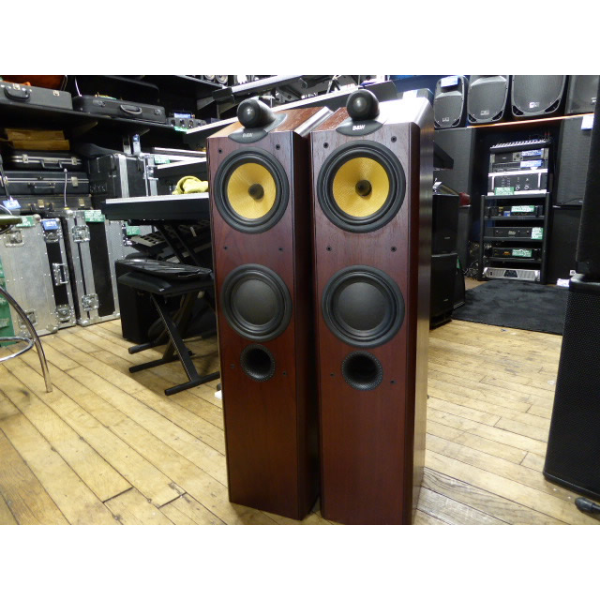

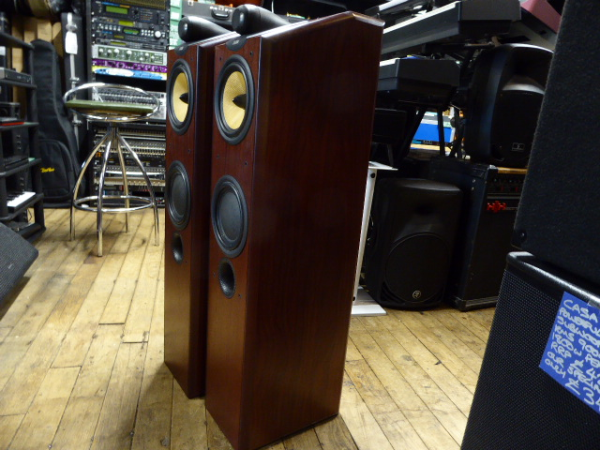

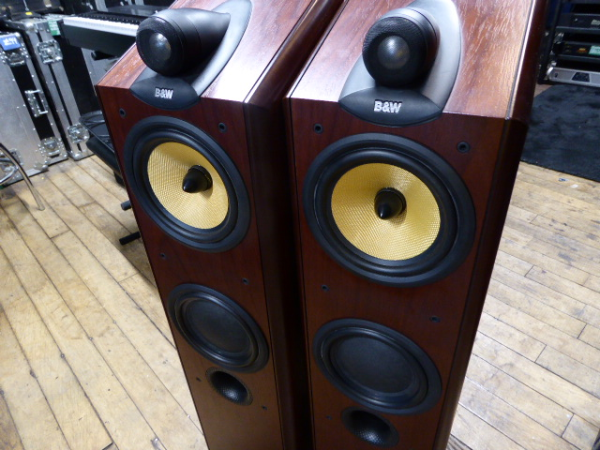

Bowers & Wilkins CDM7NT

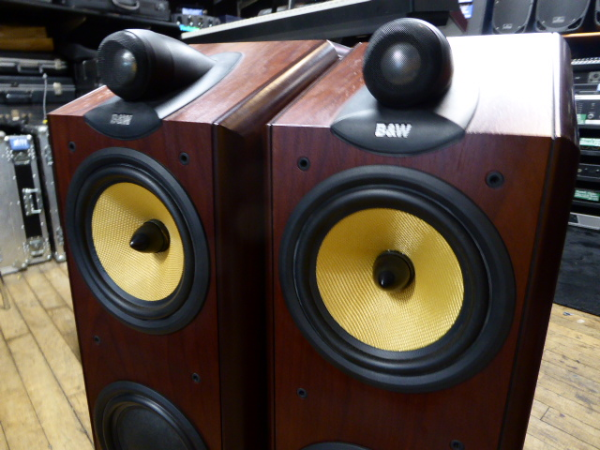

Technological features include Nautilus tweeter, Kevlar mid/bass driver, bass radiator
with mushroom construction dustcap and Flowport.
B&W's Tweeter on top technology ensures that the sound
remains focused and time-sensitive and that the stereo-image is presented with
unparalleled three dimensional accuracy.
Kevlar: B&W developed and patented the method of using Kevlar for
loudspeaker cones to reduce unwanted standing waves. DuPont originally
created Kevlar for use in bulletproof vests.
Flowport: Golf ball aerodynamics theory points the way towards lower
distortion reflex ports. Dimples improve the way the air flows over the surface of
any object. In the case of reflex ports, they offer a significant improvement over
simply flaring the port ends in reducing air flow turbulence at each end of the
port; so you get less chuffing noise and less compression at high sound levels.
2-way vented-box system
1 x 25mm alloy dome high-frequency
1 x 165mm woven Kevlar cone
bass/midrange
1 x 165mm woven paper/Kevlar
cone bass
40Hz – 20kHz ± 3dB on reference
axis
S e n s i t i v i t y: 90dB spl (2.83V, 1m)
Nominal impedance: 8 ohm.
Power handling: 50w - 150w into 8 Ohm on unclipped program.
Height: 950mm Width: 220mm
Depth: 290mm
Cabinet: Real wood veneers, Black Ash,
Cherrywood, Red Stained Cherrywood

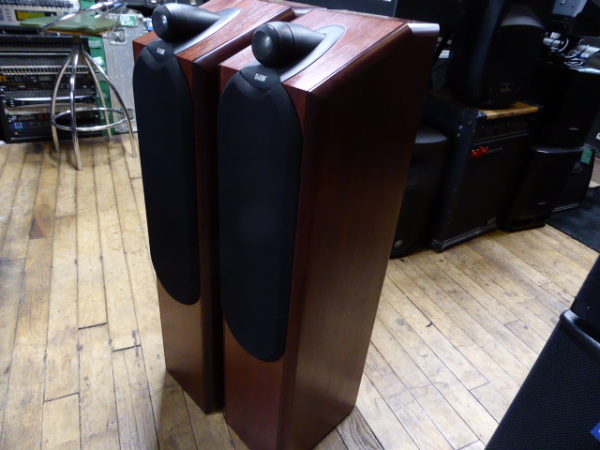

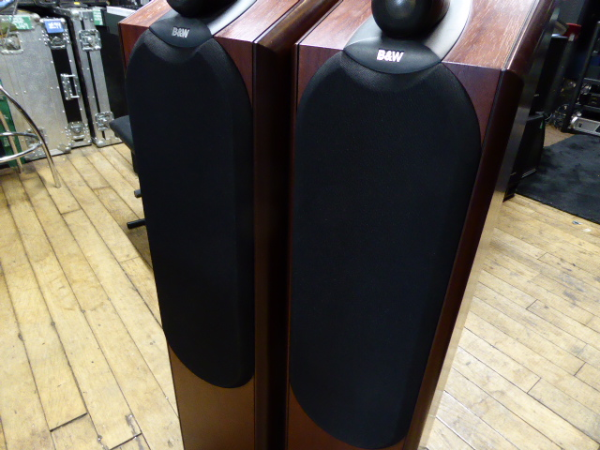

Grilles: Black cloth
