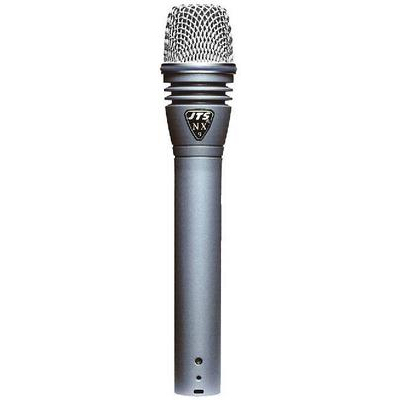

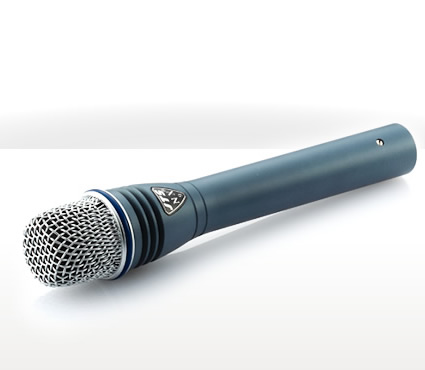

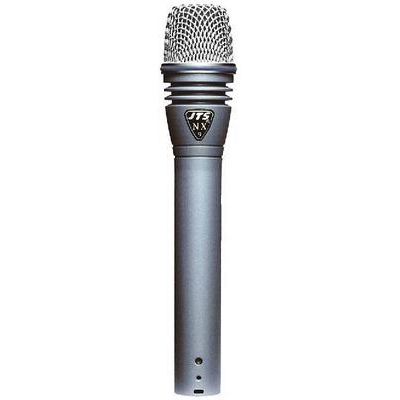

JTS NX-9

Pencil condenser microphone. Phantom or battery powered.
Pencil condenser microphone. Phantom or battery powered.
£89.00
Pencil condenser microphone. Phantom or battery powered. Pencil condenser microphone. Phantom or battery powered.
  • Details
  • Specification
The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction.
  • Type: Electret Condenser
  • Frequency Response: 60~18,000 Hz
  • Polar Pattern: Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
  • Sensitivity (at 1,000Hz):  -70dB*(0.32mV)*0dB=1V/μbar
  • Output Impedance: 400Ω
  • Phasing: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Connector: Three-pin professional audio connector (male XLR type)
  • Case: Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
  • Net Weight: 230 grams (8.1 oz)
  • Touch Noise: Super low
  • Power Supply: 9-52V phantom power or battery 1.5V AA
